Hand Tap and Drill Sets for Accurate Thread Cutting

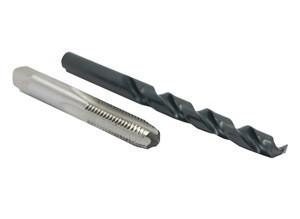

Shop hand tap and drill sets designed to take the guesswork out of drilling and tapping threaded holes. Each set pairs a high-speed steel (HSS) plug hand tap with a matching black oxide HSS drill bit, making it easier to prepare the correct hole before cutting internal threads.

These convenient tap and drill combinations are ideal for machine shops, metal fabrication, maintenance, equipment repair, and general-purpose threading applications. Choose from fractional, metric, and special-size combinations to match your thread requirements.

What's Included in a Hand Tap and Drill Set?

High-Speed Steel Plug Hand Tap

The HSS plug tap is used to cut internal threads in a previously drilled hole. Plug taps feature a moderate chamfer, making them a versatile choice for general-purpose threading and many through-hole applications. A bottoming tap may be needed when threads must extend close to the bottom of a blind hole.

Matching Black Oxide HSS Drill Bit

The included drill bit is selected to produce the appropriate tap drill hole for the corresponding thread size. Black oxide HSS drill bits are versatile general-purpose tools for drilling many common metals.

Convenient Storage Pouch

The tap and drill bit are supplied together in a convenient plastic pouch, helping keep the matching components organized for maintenance, shop, and field applications.

Why Use a Matching Tap and Drill Set?

Successful internal threading starts with drilling the correct size hole. A hole that is too small can increase tapping torque and the risk of tap breakage, while an oversized hole can result in insufficient thread engagement.

A matched tap and drill set makes selecting the correct drill bit more convenient and reduces the chance of choosing an incorrect size. These sets are especially useful for maintenance technicians, machinists, fabricators, and anyone performing occasional threading operations.

For additional sizing information, see our Tap and Drill Chart or use the Special Tap and Drill Size Calculator.

Choosing the Right Hand Tap and Drill Set

Fractional Hand Tap and Drill Sets

Fractional sets are designed for inch-based thread sizes commonly used in machinery, fabrication, maintenance, and general repair. Select the correct nominal diameter and threads per inch (TPI), including the appropriate coarse or fine thread specification.

Metric Hand Tap and Drill Sets

Metric sets pair a metric hand tap with the corresponding drill bit. Metric threads are specified by nominal diameter and thread pitch, such as M6 x 1.0. Use these sets for metric fasteners, machinery, and equipment.

For additional sizing help, use our Metric Tap Drill Calculator.

Fractional Special-Size Sets

Fractional special-size sets provide matching tap and drill combinations for less common inch thread diameters or pitches. They are useful for specialty equipment, machinery repairs, and applications requiring unusual thread specifications.

Metric Special-Size Sets

Metric special-size sets are intended for less common metric diameters or thread pitches. Confirm the required metric thread specification before ordering, especially when repairing existing threaded components.

How to Drill and Tap a Threaded Hole

Step 1: Identify the required thread diameter and pitch or threads per inch.

Step 2: Secure the workpiece and drill the hole using the matching drill bit supplied with the set. Maintain proper alignment and use suitable cutting fluid when appropriate.

Step 3: Use the HSS plug tap with an appropriate tap wrench, keeping the tap aligned with the drilled hole.

Step 4: Apply suitable cutting fluid as needed and advance the tap carefully, periodically reversing to help break chips when hand tapping.

Step 5: Remove chips, inspect the finished threads, and verify the fit with the intended fastener or an appropriate thread gauge.

Frequently Asked Questions About Hand Tap and Drill Sets

What is the advantage of buying a tap and drill set?

A matching set provides the tap and corresponding drill bit together, saving time when selecting tools and helping reduce drill-size selection errors.

What is the difference between fractional and metric tap and drill sets?

Fractional sets are used for inch-based thread specifications, while metric sets are used for metric threads identified by diameter and pitch. The two systems are not interchangeable.

What is a plug hand tap?

A plug tap has a moderate chamfer that helps guide the tap into a drilled hole. It is a versatile choice for general-purpose threading, but a bottoming tap may be required for threads close to the bottom of a blind hole.

Can I use these sets to repair damaged threads?

Hand taps can sometimes be used to clean up or restore existing internal threads, provided the original thread size and pitch are correctly identified. Severely damaged threads may require a different repair method.

Do I need cutting fluid when tapping metal?

Suitable cutting fluid can reduce friction, improve chip evacuation, and help protect the cutting edges. Select a lubricant appropriate for the workpiece material and tapping application.

Learn More About Hand Tap and Drill Sets

Watch our video to learn more about hand tap and drill sets and explore convenient matched combinations for threading applications.
